China Central Vacuum Pumps Manufacturers Suppliers Factory

Inpower Central vacuum pumps technology with frequency-controlled speed adjustment offers long system service life, optimized energy consumption and a minimal footprint. Central vacuum systems with inPower ELG deliver optimized performance and energy savings. They are controlled by advanced controllers that network with each other. The inPower ELG systems cover a wide range of applications in the field of central factory vacuum supply.

Technical parameters:

Model			ELG300	ELG400	ELG600	ELG750	ELG950	ELG1100	ELG1300
SPEED(50Hz)		m³/h	300	400	600	750	850	1100	1300
Ultimate Vacuum (50Hz)		mbar	0.3	0.3	0.3	0.3	0.3	0.3	0.3
POWER(50Hz)		KW	4	5.5	7.5	11	15	18.5	22
Motor Speed(50Hz)		rpm	Permanent magnet frequency conversion
Noise		dB	55-68	55-68	55-68	55-74	55-74	55-74	55-74
Connect	IN	Inch	DN65	DN65	DN65	DN80	DN100	DN100	DN100
Connect	OUT	Inch	DN65	DN65	DN65	DN80	DN100	DN100	DN100
Cooling Method		Air/Water	Air	Air	Air	Air	Air	Air	Air
Weight		Kg	400	650	850	950	980	1000	1050
SIZE		mm	13008201320	13008201320	13008201320	150010501300	150010501300	160011301500	160011301500

Model

ELG1800

ELG2000

ELG3000

ELG3900

ELG4600

ELG5200

SPEED(50Hz)

m³/h

1800

2000

3000

3900

4600

5200

Ultimate Vacuum (50Hz)

mbar

0.3

POWER(50Hz)

Motor Speed(50Hz)

rpm

Permanent magnet frequency conversion

Noise

60-74

75-85

Connect

Inch

DN150

DN200

OUT

Inch

DN150

DN200

Cooling Method

Air/Water

Air

Weight

1500

3200

3600

SIZE

2100*1320*1680

2400*1450*1800

3600*1800*2100

3100*1800*2200

Characteristic:

Unparalleled energy management:

The ELG series products are equipped with an adjustable intelligent vacuum degree system, which can adjust the vacuum output according to your actual vacuum degree needs. Under the same pumping speed ratio, ELG's excellent energy management reduces your energy consumption by about 50%.

Adaptability to Various Gases:

These vacuum pumps are capable of handling a wide range of gases and vapors, making them versatile for diverse industrial processes. Their adaptability to different gas compositions and operating conditions enhances their utility in various manufacturing and processing applications.

Remote Diagnostics and Service Support:

Integrated with advanced connectivity features, these pumps enable remote diagnostics and service support. This allows for proactive maintenance, troubleshooting, and timely interventions by service technicians, ultimately minimizing downtime and optimizing operational continuity.

1. System configuration with adjustable vacuum degree function

2. Average energy savings of up to 50% within the flow range (20-100%)

3. The integrated color screen controller can control the motor and frequency converter

4. Eliminated peak current surge during start/stop process

5. Electromagnetic compatibility complies with the 2004/108/EG guidelines

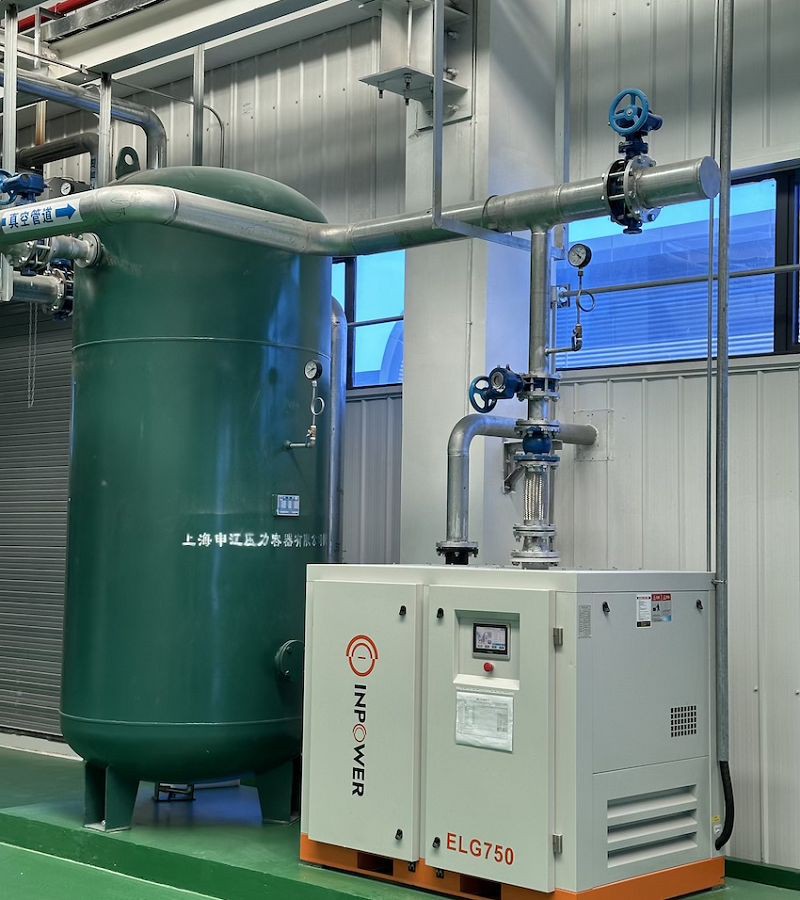

2001

Inpower Central vacuum pumps application area：

Research and Development:

In laboratory and research settings, intelligent single-stage oil-sealed screw vacuum pumps are utilized for vacuum drying, evaporation, filtration, and other experimental procedures. Their precise control and adaptability make them valuable tools in scientific research and development.

Packaging and Printing Industries:

Vacuum pumps are integral to packaging and printing operations for tasks such as vacuum hold-down, paper handling, and ink transfer. Their reliability, fast response times, and energy efficiency contribute to improved productivity in these industries.

Medical and Healthcare Applications:

Within healthcare facilities and medical device manufacturing, vacuum pumps are used in medical vacuum systems for applications such as surgical suction, wound drainage, and anesthesia delivery. Their compliance with medical standards and reliable performance are critical in healthcare settings.
