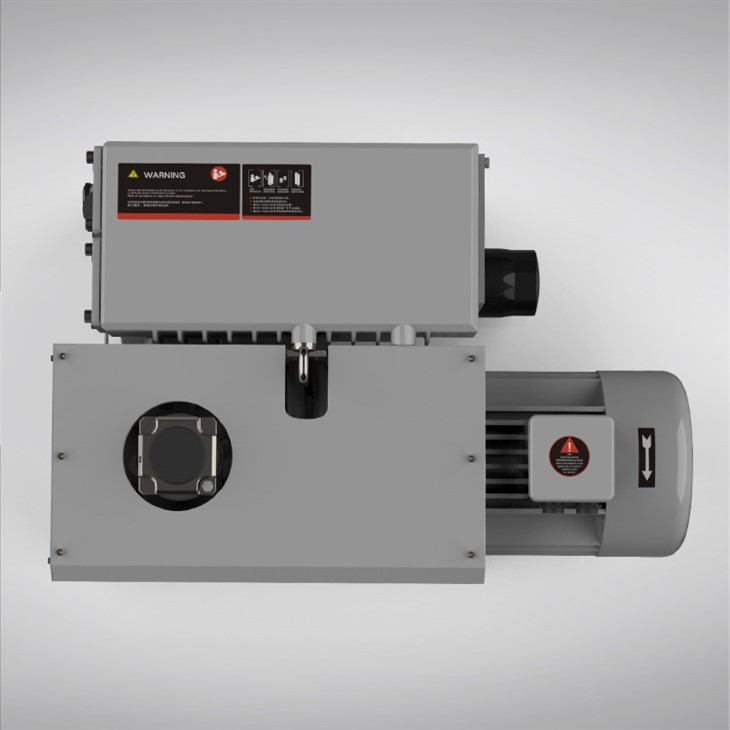

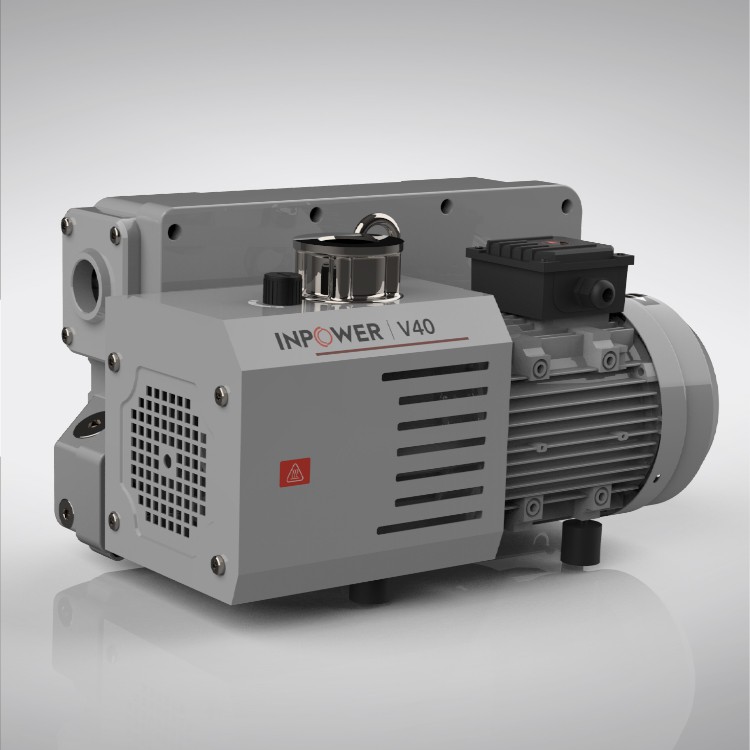

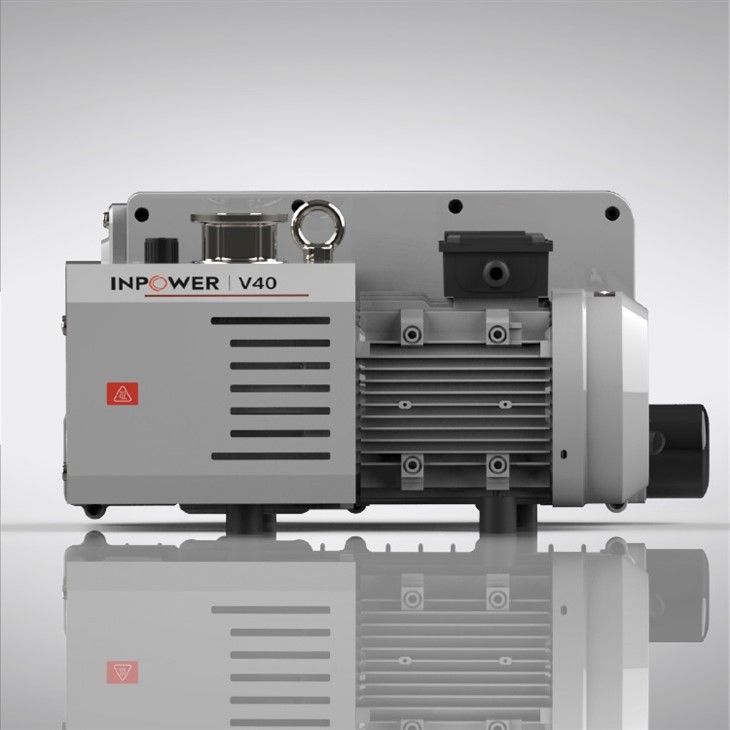

InPowerVac Vacuum Pumps For Packaging Machines suitable for low and medium vacuum field, mainly used to remove air and other dry gas, it is one of the main equipment of low and medium vacuum. It has the characteristics of reliable operation performance, less wearing parts, less vibration, low noise and high efficiency.
Pay attention to the environmental conditions during pump operation
Ambient temperature shall not exceed +45 ° C (113 ° F) and shall not be lower than 12 ° C (55 ° F).
The maximum inlet gas temperature cannot exceed 60℃
The maximum inlet pressure shall not exceed atmospheric pressure (about 1013mbar), and the inlet of the pump shall never be overpressurized
Maximum exhaust pressure shall not exceed 0.5bar(relative pressure)
inPowerVac Vacuum Pumps For Packaging Machines Technical parameters:
|
Model |
V20 |
V28 |
V40 |
V65 |
V100 |
V140 |
V160 |
||
|
Pumping Speed(50Hz) |
m3/h |
20 |
28 |
40 |
65 |
100 |
140 |
160 |
|
|
Ultimate Vacuum(50Hz) |
mbar |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Power(50Hz) |
KW |
0.75 |
0.75 |
1.5 |
2.2 |
3.0 |
4.0/4.5 |
4.5 |
|
|
Power Speed(50Hz) |
rpm |
2880 |
1450 |
1450 |
1450 |
1450 |
1450 |
1450 |
|
|
Noise |
dB |
64 |
64 |
64 |
65 |
65 |
65 |
68 |
|
|
Connect |
Inlet Diameter |
Inch |
G 1/2 |
G 1/2 |
G1-1/4 |
G1-1/4 |
G1-1/4 |
G1-1/2 |
G1-1/2 |
|
Outet Diameter |
Inch |
G 1/2 |
G 1/2 |
G1-1/4 |
G1-1/4 |
G1-1/4 |
G1-1/4 |
G1-1/2 |
|
|
Cooling Method |
Air/Water |
Air |
Air |
Air |
Air |
Air |
Air |
Air |
|
|
Weight |
Kg |
21 |
30 |
44 |
54 |
69 |
90 |
142 |
|
|
Optional Requirements |
Optional options include variable frequency,anti-corrosion, explosion-proof, etc. according to requirements |
||||||||
|
Model |
V200 |
V300 |
V350 |
V400 |
V450 |
V500 |
V630 |
||
|
Pumping Speed(50Hz) |
m3/h |
200 |
300 |
350 |
400 |
450 |
500 |
630 |
|
|
Ultimate Vacuum(50Hz) |
mbar |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Power(50Hz) |
KW |
5.5 |
7.5 |
7.5 |
11 |
11 |
11 |
15 |
|
|
Power Speed(50Hz) |
rpm |
1450 |
1450 |
1450 |
970 |
970 |
1000 |
1000 |
|
|
Noise |
dB |
70 |
70 |
72 |
76 |
76 |
79 |
79 |
|
|
Connect |
Inlet Diameter |
Inch |
G2 |
G2 |
G2 |
DN100 |
DN100 |
DN100 |
DN100 |
|
Outet Diameter |
Inch |
G2 |
G2 |
G2 |
DN80 |
DN80 |
DN80 |
DN80 |
|
|
Cooling Method |
Air/Water |
Air/Water |
Air/Water |
Air/Water |
Air |
Air |
Air |
Air/Water |
|
|
Weight |
Kg |
160 |
198 |
220 |
430 |
460 |
560 |
670 |
|
|
Optional Requirements |
Optional options include variable frequency,anti-corrosion, explosion-proof, etc. according to requirements |
||||||||
Vacuum For Packaging
In the field of food, vacuum packaging is used in a variety of cooked products, such as chicken, sausage, ham sausage, grilled fish slices, air-dried beef, etc. Preserved food such as a variety of pickles and beans, dried fruits and other various must be fresh food vacuum packaging. Vacuum packaging of food preservation time is long, greatly increase the shelf life of food.
Examples For The Use Of Inpower VACUUM Technology In Packaging:
Vacuum Packaging – Packaging of fresh food to retain freshness
MAP Packaging – Packaging of food in a modified atmosphere
Forming – e. g. trays directly in the packaging machine
Blister Packaging – Thermoforming of blisters
Foil Handling – In tubular bag packaging machines
Labelling – Rapid and reliable labelling for all kinds of packaging
Carton Erection – Folding and erection of cartons
Stacking and Palletizing – Of any external packaging
Central Vacuum Systems – Centralized vacuum supply for entire packaging departments
