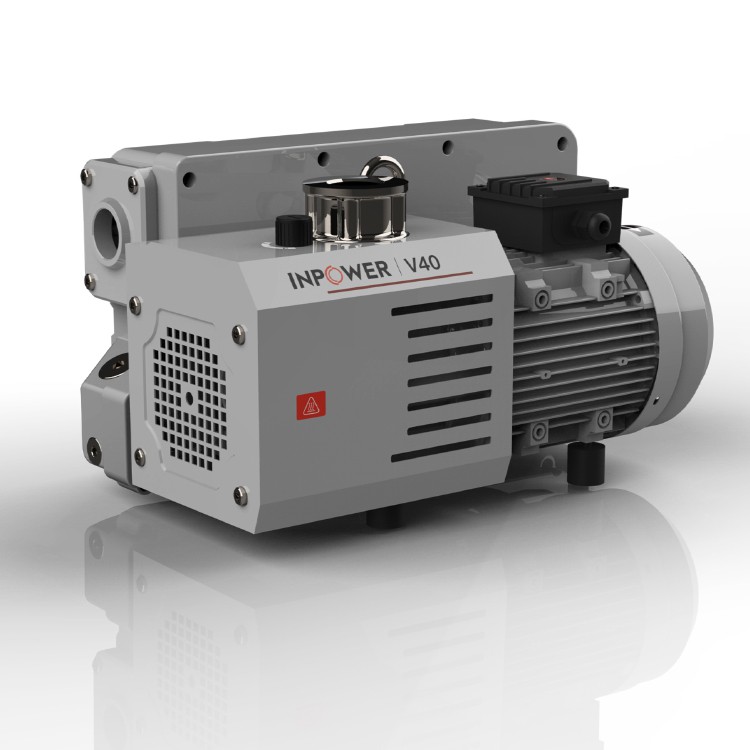

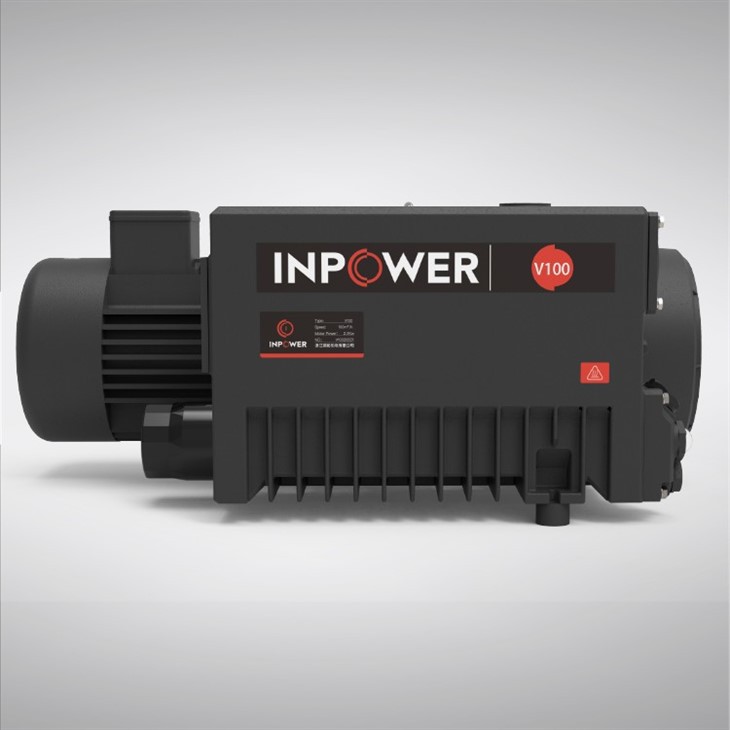

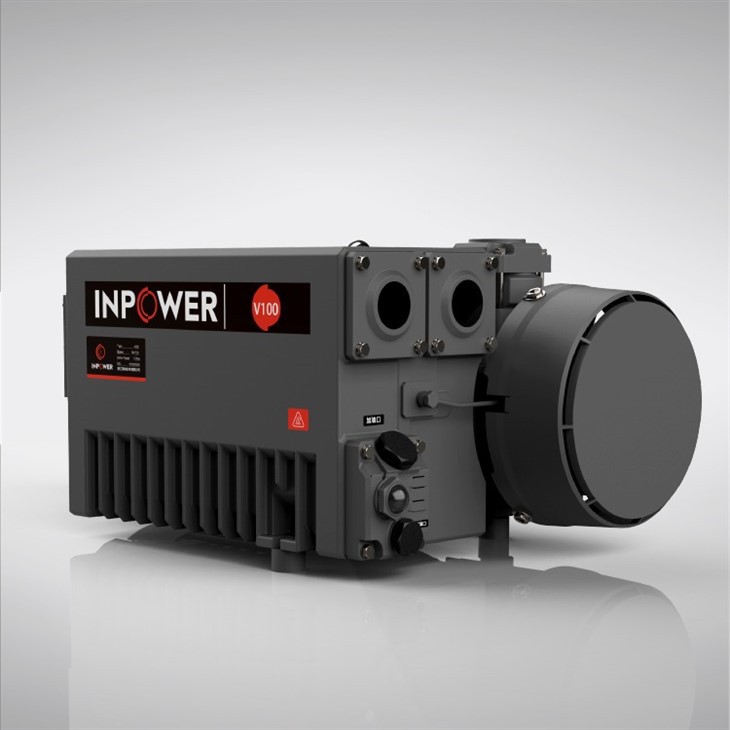

InPowerVac portable oil vacuum pump offer several functional characteristics that make them suitable for a wide range of industrial and scientific applications.
Model：V004/V20/V25/40/65/100/140/200/300/400/450/500/550/630/1200
Ultimate vacuum: ≤20Pa
SPEED 50 Hz:4 - 1200 m³/h
SPEED 60 Hz: 5 - 1440 m³/h
inPowerVac portable oil vacuum pump Technical parameters:
|
Model |
V20 |
V28 |
V40 |
V65 |
V100 |
V140 |
V160 |
||
|
Pumping Speed(50Hz) |
m3/h |
20 |
28 |
40 |
65 |
100 |
140 |
160 |
|
|
Ultimate Vacuum(50Hz) |
mbar |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Power(50Hz) |
KW |
0.75 |
0.75 |
1.5 |
2.2 |
3.0 |
4.0/4.5 |
4.5 |
|
|
Power Speed(50Hz) |
rpm |
2880 |
1450 |
1450 |
1450 |
1450 |
1450 |
1450 |
|
|
Noise |
dB |
64 |
64 |
64 |
65 |
65 |
65 |
68 |
|
|
Connect |
Inlet Diameter |
Inch |
G 1/2 |
G 1/2 |
G1-1/4 |
G1-1/4 |
G1-1/4 |
G1-1/2 |
G1-1/2 |
|
Outet Diameter |
Inch |
G 1/2 |
G 1/2 |
G1-1/4 |
G1-1/4 |
G1-1/4 |
G1-1/4 |
G1-1/2 |
|
|
Cooling Method |
Air/Water |
Air |
Air |
Air |
Air |
Air |
Air |
Air |
|
|
Weight |
Kg |
21 |
30 |
44 |
54 |
69 |
90 |
142 |
|
|
Optional Requirements |
Optional options include variable frequency,anti-corrosion, explosion-proof, etc. according to requirements |
||||||||
|
Model |
V200 |
V300 |
V350 |
V400 |
V450 |
V500 |
V630 |
||
|
Pumping Speed(50Hz) |
m3/h |
200 |
300 |
350 |
400 |
450 |
500 |
630 |
|
|
Ultimate Vacuum(50Hz) |
mbar |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Power(50Hz) |
KW |
5.5 |
7.5 |
7.5 |
11 |
11 |
11 |
15 |
|
|
Power Speed(50Hz) |
rpm |
1450 |
1450 |
1450 |
970 |
970 |
1000 |
1000 |
|
|
Noise |
dB |
70 |
70 |
72 |
76 |
76 |
79 |
79 |
|
|
Connect |
Inlet Diameter |
Inch |
G2 |
G2 |
G2 |
DN100 |
DN100 |
DN100 |
DN100 |
|
Outet Diameter |
Inch |
G2 |
G2 |
G2 |
DN80 |
DN80 |
DN80 |
DN80 |
|
|
Cooling Method |
Air/Water |
Air/Water |
Air/Water |
Air/Water |
Air |
Air |
Air |
Air/Water |
|
|
Weight |
Kg |
160 |
198 |
220 |
430 |
460 |
560 |
670 |
|
|
Optional Requirements |
Optional options include variable frequency,anti-corrosion, explosion-proof, etc. according to requirements |
||||||||
Some of the key functional characteristics of portable oil vacuum pump include:
Efficient Vacuum Generation: Oil rotary vane vacuum pumps are capable of generating a high vacuum level, making them suitable for processes that require a low-pressure environment.
Compact Design: These pumps typically have a compact design, making them easy to install and suitable for applications where space is limited.
Low Noise Levels: Oil rotary vane vacuum pumps generally operate quietly, making them suitable for use in noise-sensitive environments.
Ease of Maintenance: These pumps are relatively easy to maintain, with routine tasks such as oil changes and filter replacements helping to ensure optimal performance and longevity.
FAQ
What is the minimum order quantity?
How much quantity will be discounted for purchase?
There will be a discount for a minimum order of 10 units.
