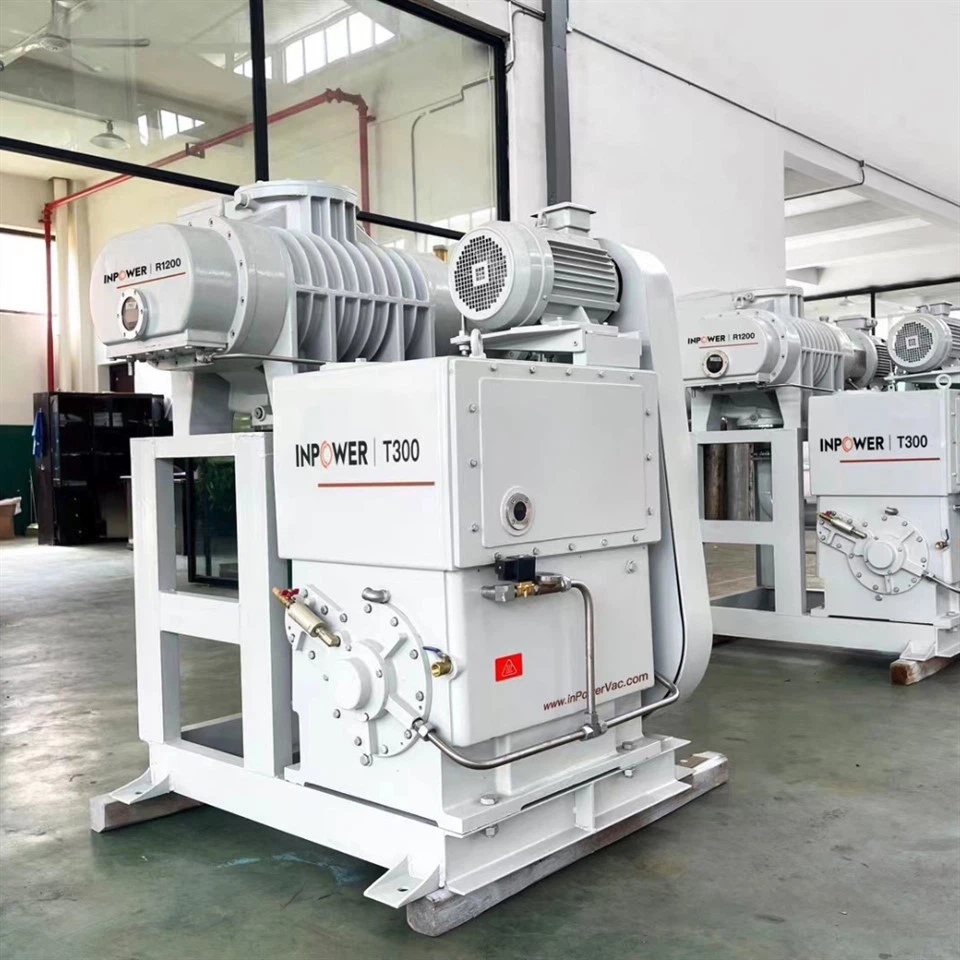

Inpower oil screw vacuum system is a type of vacuum pump system that utilizes a screw mechanism and an oil-sealed design to create a vacuum. This system combines the benefits of screw technology with the sealing properties of oil to achieve efficient and reliable vacuum performance.
Screw Technology:
Oil-sealed screw vacuum pumps use a screw mechanism for compression and evacuation of gases. The screws rotate within a cylindrical chamber, trapping and compressing gas as they move along the length of the chamber. This design allows for continuous and smooth operation, resulting in high pumping speeds and efficiency.
Oil Sealing:
In an oil-sealed screw vacuum system, the screws are lubricated and sealed with oil to create a tight seal between moving parts. The oil serves multiple purposes, including lubrication, sealing, cooling, and gas capture. It helps create a vacuum-tight environment within the pump and aids in the compression of gases.
High Performance:
Oil-sealed screw vacuum systems are known for their high pumping speeds, which make them suitable for applications requiring rapid evacuation or high throughput. They can achieve deep vacuum levels and handle a wide range of gas loads effectively.
Contaminant Handling:
The oil in the system acts as a barrier to contaminants and helps trap dust, particles, and vapors present in the evacuated gases. This feature is beneficial in applications where gas purity is critical, as the oil can capture and neutralize contaminants, preventing them from entering the vacuum chamber or downstream processes.
Low Maintenance:
While oil-sealed vacuum systems require regular oil changes and maintenance to ensure optimal performance, they are generally reliable and have longer service intervals compared to dry pumps. Proper maintenance practices can help extend the life of the pump and maintain consistent vacuum performance.
Energy Efficiency:
Some modern oil-sealed screw vacuum pumps are designed to be energy-efficient, incorporating features such as variable speed drives and optimized rotor geometries to reduce power consumption and operating costs.
Noise and Vibration:
Oil-sealed screw vacuum systems can produce noise and vibration during operation due to the rotating screws and oil circulation. Proper installation, sound insulation, and vibration dampening measures can help minimize these effects and improve the working environment.
Inpower oil screw vacuum system applications including:
Chemical and pharmaceutical processing
Vacuum distillation and drying
Metallurgy and heat treatment
Food packaging and processing
Electronics manufacturing
Research laboratories and universities
