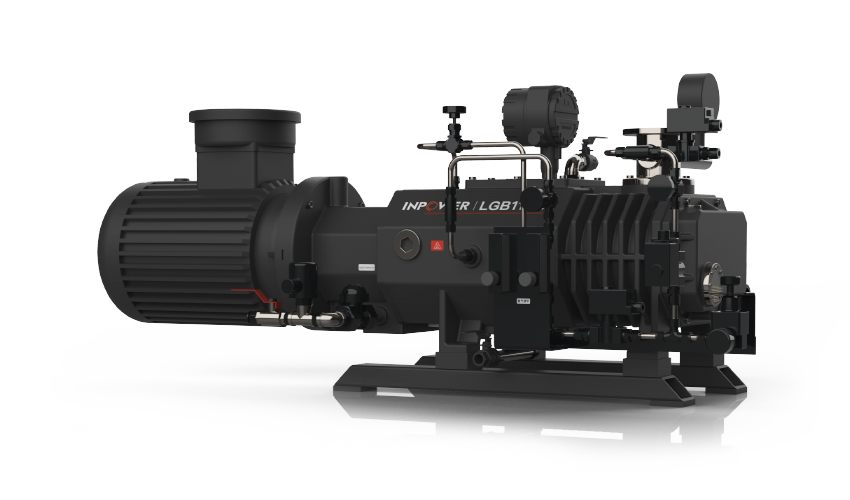

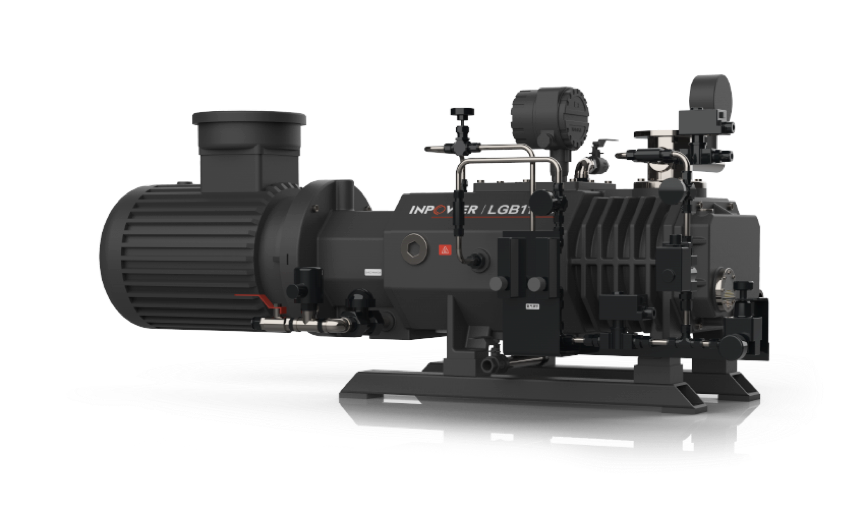

InPower chemical resistant vacuum pump are specifically designed to handle corrosive gases and vapors, making them suitable for applications where standard vacuum pumps may not be able to withstand exposure to aggressive chemicals. These pumps are commonly used in industries such as chemical processing, pharmaceutical manufacturing, laboratory research, and semiconductor fabrication.
Features:
Corrosion-Resistant Materials: These pumps are constructed from materials that can withstand contact with corrosive chemicals, acids, and solvents without degrading or deteriorating.
Chemical-Resistant Seals and Coatings:
Special seals and coatings are used to protect pump components from chemical attack, ensuring long-term reliability and performance.
Sealed Construction:
Many chemical-resistant vacuum pumps have sealed designs to prevent exposure of internal components to corrosive substances, extending the pump's lifespan.
Chemical-Grade Fluids:
Some pumps use chemical-grade fluids that are compatible with a wide range of corrosive chemicals to ensure smooth operation and efficient vacuum performance.
inPower chemical resistant vacuum pump Technical parameters:
Model：LGB30/50/70/110/150/180/200/220/270/300/360/400/500
Ultimate vacuum: ≤1Pa
SPEED 50 Hz:30～500 L/s
SPEED 60 Hz:36 - 600 L/s
|
Model |
LGB30 |
LGB50 |
LGB70 |
LGB110 |
LGB150 |
LGB180 |
LGB200 |
LGB220 |
LGB270 |
LGB300 |
LGB360 |
LGB400 |
LGB500 |
||
|
SPEED(50Hz) |
L/s |
30 |
50 |
83 |
110 |
150 |
180 |
200 |
230 |
270 |
300 |
360 |
360 |
500 |
|
|
m3/h |
110 |
180 |
300 |
400 |
540 |
650 |
720 |
830 |
970 |
1080 |
1300 |
1500 |
1800 |
||
|
Ultimate Vacuum (50Hz) |
Pa |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
|
|
Maximum exhaust pressure |
bar |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.5 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
|
|
POWER(50Hz) |
Kw |
4 |
4 |
5.5/7.5 |
11 |
15 |
15 |
18.5 |
18.5 |
22 |
30 |
37 |
37 |
37 |
|
|
Motor Speed(50Hz) |
rpm |
2880 |
2880 |
2880 |
2880 |
2880 |
2880 |
2880 |
2880 |
2880 |
2880 |
2880 |
2880 |
2880 |
|
|
Connect |
IN |
mm |
50 |
50 |
65 |
65 |
100 |
100 |
150 |
150 |
150 |
150 |
150 |
150 |
150 |
|
OUT |
mm |
40 |
40 |
65 |
65 |
80 |
80 |
100 |
100 |
100 |
100 |
100 |
100 |
100 |
|
|
Water |
Flow |
L/min |
6 |
6 |
10 |
15 |
20 |
20 |
25 |
25 |
28 |
28 |
28 |
28 |
28 |
|
Pressure |
MPa |
0.2～0.35 |
0.2～0.35 |
0.2～0.35 |
0.2～0.35 |
0.2～0.35 |
0.2～0.35 |
0.2～0.35 |
0.2～0.35 |
0.2～0.35 |
0.2～0.35 |
0.2～0.35 |
0.2～0.35 |
0.2～0.35 |
|
|
Connect |
G3/8" |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
G1/2" |
||
|
Cooling Method |
Air/Water |
Air/Water |
Water |
Water |
Water |
Water |
Water |
Water |
Water |
Water |
Water |
Water |
Water |
Water |
|
|
Noise |
dB |
75 |
75 |
75 |
76 |
76 |
78 |
78 |
78 |
80 |
80 |
85 |
85 |
85 |
|
|
Weight |
Kg |
310 |
310 |
475 |
570 |
840 |
840 |
1200 |
1220 |
1250 |
1300 |
1350 |
1380 |
1400 |
|
|
Special Requirements |
According to requirements, it can be configured with variable frequency, anti-corrosion, explosion-proof, etc |
||||||||||||||
inPower chemical resistant vacuum pump Application area:
Chemical Processing:
Chemical-resistant vacuum pumps are essential in chemical plants and processing facilities for tasks such as solvent recovery, distillation, and filtration involving corrosive chemicals.
Laboratory Applications:
In research laboratories, these pumps are used for chemical reactions, solvent evaporation, vacuum filtration, and other processes that involve handling corrosive gases or vapors.
Pharmaceutical Manufacturing:
Pharmaceutical companies utilize chemical-resistant vacuum pumps for tasks like drying, crystallization, and distillation of drugs and active pharmaceutical ingredients (APIs) in the presence of corrosive solvents.
Semiconductor Industry:
In semiconductor manufacturing, chemical-resistant vacuum pumps are employed in processes such as plasma etching, ion implantation, and chemical vapor deposition (CVD), where corrosive gases are used to fabricate semiconductor devices.
Environmental Testing:
Chambers used for environmental testing and simulation, such as salt spray testing or exposure to corrosive atmospheres, require chemical-resistant vacuum pumps to create and maintain the necessary vacuum conditions.
Waste Water Treatment:
Chemical-resistant vacuum pumps play a crucial role in waste water treatment facilities for tasks like degassing, chemical dosing, and evaporation processes involving corrosive chemicals.
