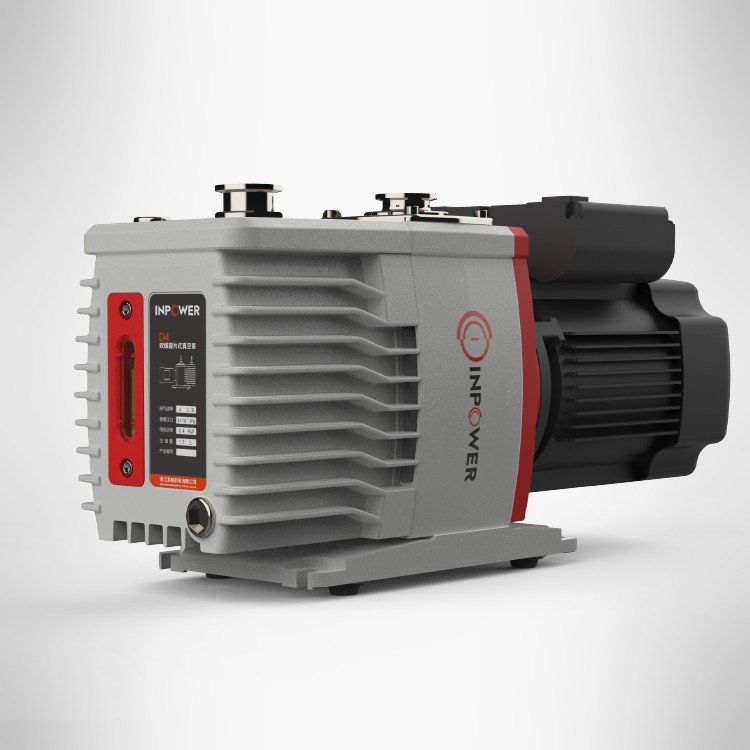

InPowerVac vacuum aspirator lab Adopting a balanced design, the noise and vibration during design and use are very low, with minimal interference to the experimental and production environments.
Technical Parameter：
|
Model |
D2 |
D4 |
D6 |
D9 |
D14 |
D18 |
D25 |
D275 |
||
|
Pumping Speed(50Hz) |
m3/h |
8 |
16 |
24 |
30 |
48 |
60 |
90 |
275 |
|
|
Ultimate Vacuum(50Hz) |
Pa |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
|
|
Power(50Hz) |
KW |
0.55 |
0.55 |
0.75 |
0.75 |
1.5 |
202 |
205 |
7.5 |
|
|
Power Speed(50Hz) |
rpm |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
|
|
Noise |
dB |
50 |
50 |
53 |
53 |
58 |
58 |
62 |
68 |
|
|
Connect |
Inlet Diameter |
Inch |
KF16 |
KF25 |
KF25 |
KF40 |
KF40 |
KF40 |
KF40 |
VG80 |
|
Outet Diameter |
Inch |
KF16 |
KF25 |
KF25 |
KF25 |
KF40 |
KF40 |
KF40 |
VG50 |
|
|
Cooling Method |
Air/Water |
Air |
Air |
Air |
Air |
Air |
Air |
Air |
Air |
|
|
Weight |
Kg |
23 |
26 |
38 |
40 |
66 |
85 |
90 |
255 |
|
|
Optional Requirements |
Optional options include variable frequency,anti-corrosion, explosion-proof, etc. according to requirements |
|||||||||
Advantage：
The pump motor is directly connected to the pump body, with a simple structure, small volume, light weight, and easy to move and install.
Low power consumption, using 220V voltage, convenient to use< Except for the large pump 380V, please refer to the technical parameters.
The aluminum alloy die-casting shell is lightweight and beautiful. The internal parts are processed by high-precision machinery, with minimal vibration, low noise, and stable and reliable vacuum degree.
InPowerVac vacuum aspirator lab Suitable for suction of general gases, and when using gas stabilizers, it can also suction gases containing small amounts of condensable gases (such as water vapor). When extracting gases with high oxygen content, explosive, corrosive to ferrous metals, and chemically reactive to vacuum oil, additional devices should be added. This type of pump can be used alone or as a precursor pump for high vacuum pumps such as diffusion pumps, Roots pumps, and molecular pumps. This type of pump is widely used in industries such as vacuum coating, vacuum heat treatment, electronics, semiconductors, lighting, food packaging, refrigeration, etc.
