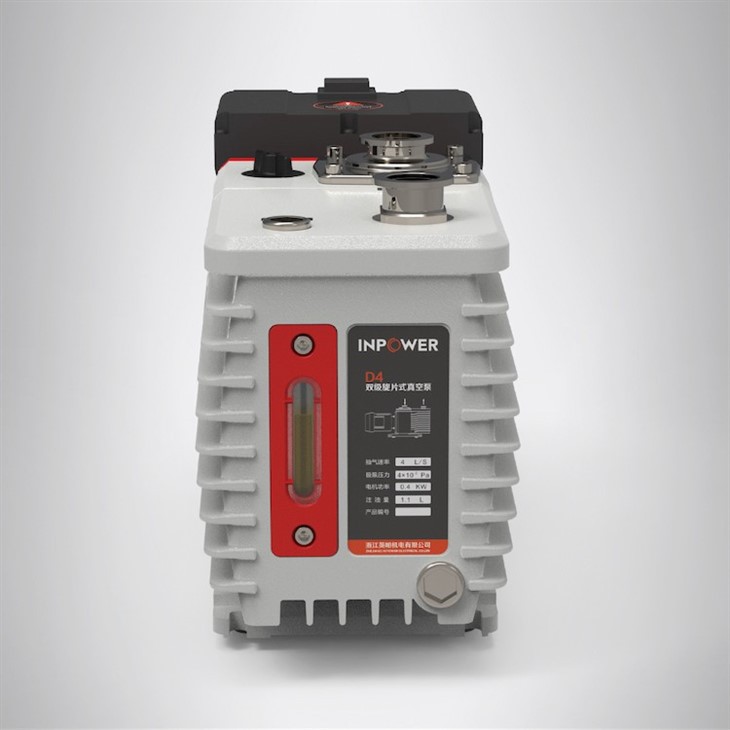

InPowerVac front stage vacuum pumps is a direct force oil immersed mechanical vacuum pump, which is a basic equipment used to extract gas from sealed containers and obtain a vacuum environment. It can be used alone or as a pre pump and pre pump for Roots pumps, diffusion pumps, and molecular pumps, forming a vacuum unit to jointly pump air from the container, achieving ultra-high vacuum.
Technical Parameter：
|
Model |
D2 |
D4 |
D6 |
D9 |
D14 |
D18 |
D25 |
D275 |
||
|
Pumping Speed(50Hz) |
m3/h |
8 |
16 |
24 |
30 |
48 |
60 |
90 |
275 |
|
|
Ultimate Vacuum(50Hz) |
Pa |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
0.05 |
|
|
Power(50Hz) |
KW |
0.55 |
0.55 |
0.75 |
0.75 |
1.5 |
202 |
205 |
7.5 |
|
|
Power Speed(50Hz) |
rpm |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
1440 |
|
|
Noise |
dB |
50 |
50 |
53 |
53 |
58 |
58 |
62 |
68 |
|
|
Connect |
Inlet Diameter |
Inch |
KF16 |
KF25 |
KF25 |
KF40 |
KF40 |
KF40 |
KF40 |
VG80 |
|
Outet Diameter |
Inch |
KF16 |
KF25 |
KF25 |
KF25 |
KF40 |
KF40 |
KF40 |
VG50 |
|
|
Cooling Method |
Air/Water |
Air |
Air |
Air |
Air |
Air |
Air |
Air |
Air |
|
|
Weight |
Kg |
23 |
26 |
38 |
40 |
66 |
85 |
90 |
255 |
|
|
Optional Requirements |
Optional options include variable frequency,anti-corrosion, explosion-proof, etc. according to requirements |
|||||||||
Advantage：
Exclusive oil pump design ensures effective lubrication of the cylinder body during use, allowing the pump to operate for a long time.
Stopping the pump without returning oil can effectively prevent contamination of the pumping pipeline and container.
There is a specialized oil mist filtering device that can eliminate exhaust oil mist pollution, without spraying oil or leaking oil.
inPowerVac front stage vacuum pumps application area
Refrigeration, automotive air conditioning maintenance, production line exhaust, small fluorine dispensers, electric light sources, light bulbs, electronic tubes, picture tubes, electric vacuum devices, semiconductors, photographic plates, plate printers, printing machinery, vacuum packaging, vacuum forming, vacuum adsorption, vacuum molding, medical equipment, scientific instruments, laboratory physical and chemical analysis, gas analysis, gas leak detection, electric vacuum devices, semiconductors, pharmaceuticals Various vacuum pumping operations such as petrochemicals.
FAQ
Can the customer provide their packaging solution, will you produce it for them?
YES
