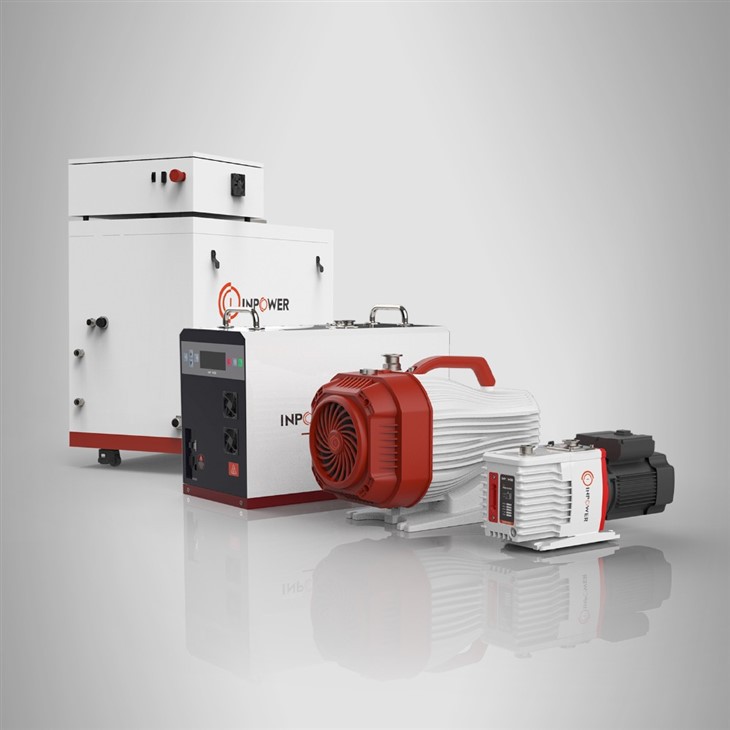

InPowerVac turbo pump system do not require working fluids, thus avoiding contamination of the working environment. They are suitable for applications requiring high purity and oil-free vacuum environments. These pumps are known for their simple structure, easy maintenance, and stable operation, making them widely utilized in various industrial and scientific fields.
Model：G10/16/36/45
Ultimate vacuum: ≤1Pa
SPEED 50 Hz:10-45 m³/h
SPEED 60 Hz: 10-45 m³/h
inPowerVac turbo pump system Technical parameters:
|
MODEL |
G10 |
G30 |
|
|
Nominal Rotation Speed |
rpm |
1800 |
1750 |
|
Displacement |
m³/h |
12 |
30 |
|
Ultimate Vacuum |
mbar |
0.01 |
0.008 |
|
Motor Power |
W |
400 |
750 |
|
Voltage Input |
V |
1- phase 100-240 |
1- phase100-240 / 3- phase200-460 |
|
Noise Level |
dB |
54 |
63 |
|
Inlet Flange |
- |
KF25 |
KF40 |
|
Exhaust Flange |
- |
KF25 |
KF40 |
|
Max Water Vapour Pumping Rate |
g/h |
100 |
60 |
|
Cooling System |
- |
Air-cooled |
Air-cooled |
|
Weight |
kg |
28 |
44 |
|
Dimensions |
mm |
430×255×290 |
490*305*400 |
inPowerVac turbo pump system characteristic：
(1)Oil-Free Operation: Dry vortex vacuum pumps do not require oil or other lubricants for operation, making them ideal for applications where oil contamination is a concern.
(2)Clean Vacuum Environment: These pumps can create a clean and oil-free vacuum environment, suitable for processes that require high purity levels.
(3)Low Maintenance: Compared to oil-sealed vacuum pumps, dry vortex vacuum pumps have simpler designs with fewer components, leading to lower maintenance requirements and reduced downtime.
(4)Energy Efficiency: Dry vortex vacuum pumps are known for their energy-efficient operation, helping to reduce overall operational costs.
Applications:
(1)Semiconductor Manufacturing: Dry vortex vacuum pumps are used in semiconductor manufacturing processes that require a clean, oil-free vacuum environment. They help in the fabrication of semiconductor devices by providing precise and reliable vacuum suction.
(2)Analytical Instruments: These pumps are commonly employed in analytical instruments such as mass spectrometers, electron microscopes, and other laboratory equipment that require a stable and contamination-free vacuum environment for accurate analysis
(3)Research Laboratories: Dry vortex vacuum pumps find extensive usage in research laboratories for various experiments, vacuum systems, and equipment that demand oil-free and reliable vacuum performance.
(4)Food Packaging: In the food industry, these pumps are utilized in vacuum packaging machines to extend the shelf life of food products by removing air and creating a vacuum-sealed package.
