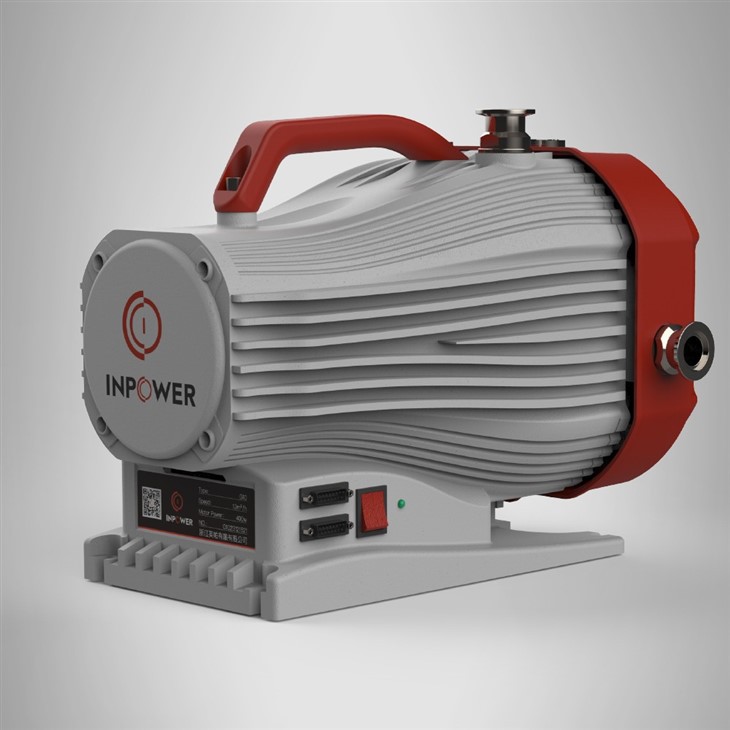

InPowerVac turbo vacuum pump are a type of positive displacement pump that operates without the need for oil or water as a lubricant or sealant. They consist of two interleaved spiral-shaped scrolls-one stationary and one rotating-that create a series of crescent-shaped pockets, which trap and transport gas from the inlet to the exhaust of the pump.
Model：G10/16/36/45
Ultimate vacuum: ≤1Pa
SPEED 50 Hz:10-45 m³/h
SPEED 60 Hz: 10-45 m³/h
inPowerVac turbo vacuum pump Technical parameters:
|
MODEL |
G10 |
G30 |
|
|
Nominal Rotation Speed |
rpm |
1800 |
1750 |
|
Displacement |
m³/h |
12 |
30 |
|
Ultimate Vacuum |
mbar |
0.01 |
0.008 |
|
Motor Power |
W |
400 |
750 |
|
Voltage Input |
V |
1- phase 100-240 |
1- phase100-240 / 3- phase200-460 |
|
Noise Level |
dB |
54 |
63 |
|
Inlet Flange |
- |
KF25 |
KF40 |
|
Exhaust Flange |
- |
KF25 |
KF40 |
|
Max Water Vapour Pumping Rate |
g/h |
100 |
60 |
|
Cooling System |
- |
Air-cooled |
Air-cooled |
|
Weight |
kg |
28 |
44 |
|
Dimensions |
mm |
430×255×290 |
490*305*400 |
characteristic：
(1)Quiet Operation: These pumps typically operate quietly, making them suitable for applications where noise levels need to be minimized.
(2)Wide Operating Range: Dry vortex vacuum pumps can handle a wide range of vacuum levels,
making them versatile for different industrial and scientific applications.
(3)Environmental Friendliness: By eliminating the need for oil or other chemicals, dry vortex vacuum pumps are environmentally friendly and reduce the risk of environmental contamination.
turbo vacuum pump Applications:
(1)Medical Devices: Dry vortex vacuum pumps are essential in medical equipment manufacturing for processes that necessitate a clean and oil-free vacuum environment to ensure the quality and safety of medical devices.
(2)Vacuum Ovens: These pumps are utilized in vacuum ovens for drying, sterilization, and other heat treatment processes in industries such as pharmaceuticals, electronics, and materials science.
(3)Environmental Testing: Dry vortex vacuum pumps play a crucial role in environmental testing chambers where precise vacuum levels are required for simulating different environmental conditions.
(4)Automotive Industry: These pumps are used in automotive manufacturing processes for various applications such as brake system testing, engine calibration, and leak testing.
