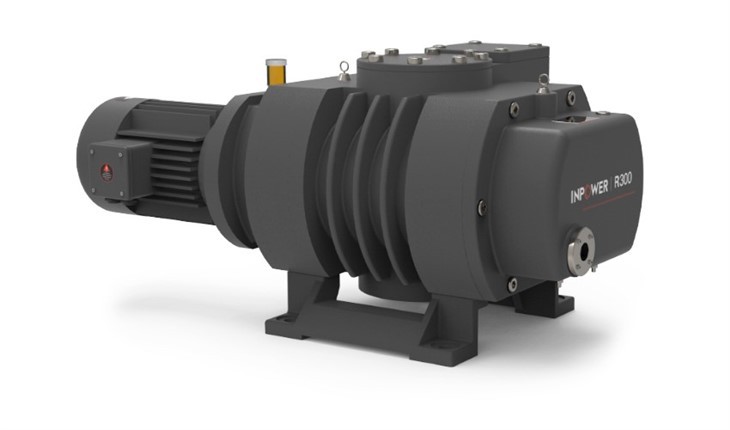

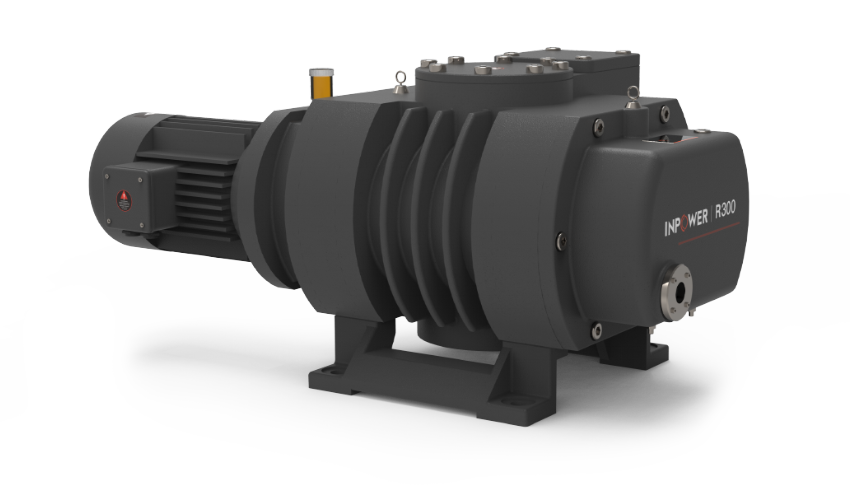

Inpower mechanical vacuum booster system pump is a type of vacuum pump that utilizes a pair of synchronized, multi-lobe rotors to increase the efficiency and performance of a primary vacuum pump. This system is commonly used in various industrial applications where high vacuum levels are required, such as in the manufacturing of semiconductors, vacuum heat treatment, and other processes.
Model:R30/70/150/300/400/600/900/1200/2500/5000/10000
Ultimate vacuum:≤0.01Pa
SPEED 50Hz: 30-10000 L/s
SPEED 60Hz: 36-12000 L/s
Technical Parameter：
|
Model |
R30 |
R70 |
R150 |
R300 |
R600 |
R1200 |
R2500 |
|||
|
Pumping Speed(50Hz) |
L/s |
41 |
83 |
166 |
360 |
600 |
1200 |
2500 |
||
|
Ultimate Vacuum(50Hz) |
Pa |
5*10-2 |
5*10-2 |
5*10-2 |
5*10-2 |
5*10-2 |
5*10-2 |
5*10-2 |
||
|
Maximum Differential Pressure |
Pa |
6700 |
6700 |
6700 |
5500 |
5500 |
4000 |
4000 |
||
|
Pressure Difference Of Overflow Valve (Optional) |
Pa |
8000 |
8000 |
8000 |
8000 |
8000 |
8000 |
8000 |
||
|
Power(50Hz) |
Kw |
1.1 |
1.1 |
2.2 |
4 |
7.5 |
11 |
18.5 |
||
|
Power Speed(50Hz) |
rpm |
1440 |
2880 |
2880 |
2880 |
2880 |
2880 |
2880 |
||
|
Connect |
Inlet Diameter |
mm |
80 |
80 |
100 |
150 |
200 |
250 |
320 |
|
|
Outet Diameter |
mm |
80 |
80 |
100 |
150 |
200 |
250 |
320 |
||
|
Cooling Method |
Air/Water |
Air |
Air |
Water |
Water |
Water |
Water |
Water |
||
|
Weight |
Kg |
80 |
110 |
200 |
270 |
580 |
780 |
1400 |
||
|
Optional Requirements |
Optional options include variable frequency,anti-corrosion, explosion-proof, etc. according to requirements |
|||||||||
Characteristic：
High Pumping Speed: The roots vacuum booster system pump can provide high pumping speeds, allowing for quick evacuation of large volumes of gas from a system. This makes it ideal for applications where rapid vacuum creation is essential.
High Compression Ratio: This type of pump can achieve a high compression ratio, meaning it can effectively reduce the pressure of the system to very low levels. This is crucial for processes requiring deep vacuum levels.
inPower mechanical vacuum booster system pump application area：
Steel de-gassing
Coating
Low density wind tunnels
Pharmaceutical freeze drying
Industrial freeze drying
