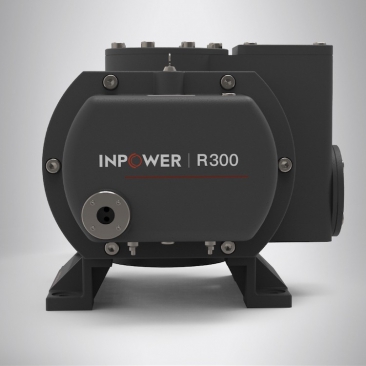

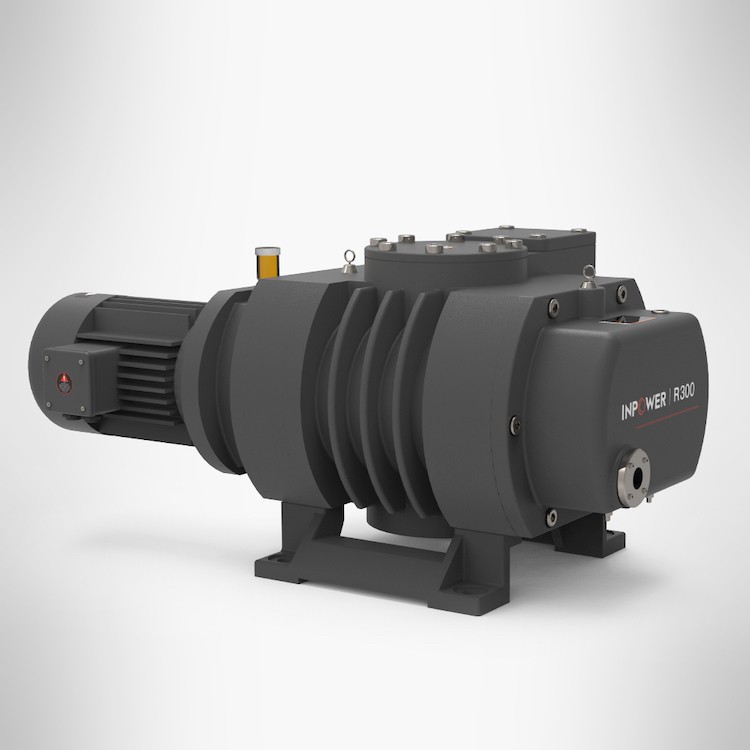

InPower vacuum assist pump uses a pair of 8-shaped rotors to rotate in opposite directions at a constant speed in the pump casing, generating suction and exhaust gases. Roots vacuum pump cannot be used alone, only the front stage pump in series can be used.

It is recommended to choose the inPower V series single stage rotary vane pump, D series double stage rotary vane pump, and LGB series oil-free screw pump as the front stage pump.

Model:R30/70/150/300/400/600/900/1200/2500/5000/10000

Ultimate vacuum:≤0.01Pa

SPEED 50Hz: 30-10000 L/s

SPEED 60Hz: 36-12000 L/s

Technical Parameter：

Model			R30	R70	R150	R300		R600	R1200	R2500
Pumping Speed(50Hz)		L/s	41	83	166	360		600	1200	2500
Ultimate Vacuum(50Hz)		Pa	5*10^-2	5*10^-2	5*10^-2	5*10^-2		5*10^-2	5*10^-2	5*10^-2
Maximum Differential Pressure		Pa	6700	6700	6700	5500		5500	4000	4000
Pressure Difference Of Overflow Valve (Optional)		Pa	8000	8000	8000	8000		8000	8000	8000
Power(50Hz)		Kw	1.1	1.1	2.2	4		7.5	11	18.5
Power Speed(50Hz)		rpm	1440	2880	2880	2880		2880	2880	2880
Connect	Inlet Diameter	mm	80	80	100	150		200	250	320
Connect	Outet Diameter	mm	80	80	100	150		200	250	320
Cooling Method		Air/Water	Air	Air	Water		Water	Water	Water	Water
Weight		Kg	80	110	200	270		580	780	1400
Optional Requirements		Optional options include variable frequency,anti-corrosion, explosion-proof, etc. according to requirements

Characteristic：

1. Imported oil seals and bearings are used, with a runout of ≤ 0.02mm at the shaft seal to prevent oil leakage.

2. The pump body design includes an overflow valve, which has automatic overload prevention function.

3. The pump rotor support adopts a reliable clearance elimination structure and high-precision helical gears, which can operate for a long time under high pressure difference.

4. The annual sales volume reaches 10000 units, and it operates stably.

5. We can provide voltage and frequency products from different countries/regions around the world.
